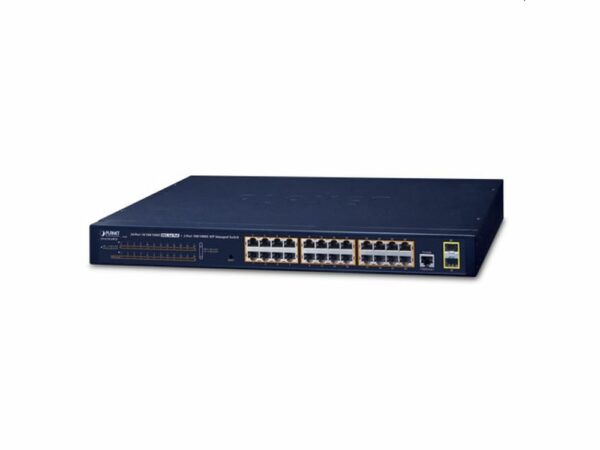

Planet Networking IPv4, 24-Port Managed 802.3at POE+ Gigabit Ethernet Switch + 2-Port 100/1000X SFP - GS-4210-24P2S

Hardware Specifications
Hardware Version2
Copper Ports24 × 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports
PoE Injector Port24 802.3af/802.3at PoE Injector Ports
SFP/mini-GBIC Slots2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Console1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch ArchitectureStore-and-Forward
Switch Fabric52Gbps/non-blocking
Switch Throughput@64 bytes38.6Mpps @64 bytes
MAC Address Table8K entries
Shared Data Buffer4.1 megabits
Flow ControlIEEE 802.3x pause frame for full-duplexBack pressure for half-duplex
Jumbo Frame9216 bytes
Reset Button< 5 sec: System reboot> 5 sec: Factory default
LEDSystem:Power (Green)10/100/1000T RJ45 Interfaces (Port 1 to Port 24):1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange)100/1000Mbps SFP Interfaces (Port 25 to Port 26):1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
Thermal Fan2
Power Requirements100~240V AC, 50/60Hz, 4A (max.)
Power Consumption/DissipationMax. 330 watts/1122 BTU
Dimensions (W x D x H)445 × 207 × 45 mm (1U height)
Weight2.8kg
EnclosureMetal
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet/PSEIEEE 802.3at Power over Ethernet Plus/PSE
PoE Power OutputPer Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget300 watts
Number of PDs, 7 watts24
Number of PDs, 15.4 watts19
Number of PDs, 30 watts9
Layer 2 Functions
Port MirroringTX/RX/bothMany-to-1 monitor
VLAN802.1Q tagged-based VLANUp to 256 VLAN groups, out of 4094 VLAN IDs802.1ad Q-in-Q tunnelingVoice VLANProtocol VLANPrivate VLAN (Protected port)GVRPManagement VLAN
Link AggregationIEEE 802.3ad LACP supports 1 group of 2-port trunk and static trunk supports 1 group of 2-port trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IGMP SnoopingIGMP (v2/v3) snoopingIGMP querierUp to 256 multicast groups
MLD SnoopingIPv6 MLD (v1/v2) snooping, up to 256 multicast groups
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACLPv4/IPv6 IP-based ACE/MAC-based ACE
QoS8 mapping IDs to 8 level priority queues- Port number- 802.1p priority- DSCP/IP precedence of IPv4/IPv6 packetsTraffic classification based, strict priority and WRRIngress/Egress Rate Limit per port bandwidth control
SecurityIEEE 802.1X port-based authenticationBuilt-in RADIUS client to cooperate with RADIUS serverRADIUS/TACACS+ authenticationIP-MAC port bindingMAC filteringStatic MAC addressDHCP snooping and DHCP Option82STP BPDU guard, BPDU filtering and BPDU forwardingDoS attack preventionARP inspectionIP source guardStorm control supportBroadcast/unknown unicast/unknown multicast
Management Functions
Basic Management InterfacesRJ45 Console; Web browser; Telnet; SNMP v1, v2c, v3Firmware upgrade by HTTP/TFTP Protocol through Ethernet networkConfiguration upload/download through HTTP/TFTPRemote/Local SyslogSystem logLLDP ProtocolSNTPPLANET Smart Discovery Utility
Secure Management InterfacesHTTPs, SNMP v3
SNMP MIBsRFC 3635 Ethernet-like MIBRFC 2863 Interface Group MIBRFC 2819 RMON (1, 2, 3, 9)RFC 1493 Bridge MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX/100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000TIEEE 802.3x flow control and back pressureIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af Power over EthernetIEEE 802.3at Power over Ethernet PlusRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP version 1RFC 2236 IGMP version 2RFC 3376 IGMP version 3RFC 2710 MLD version 1RFC 3810 MLD version 2
Environment
OperatingTemperature: 0 ~ 50 degrees CRelative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees CRelative Humidity: 5 ~ 95% (non-condensing)
