Specifications:
Frequency5150-5850MHz
Antenna typeDual-polarity Sector Antenna
Gain (dBi)2 × 17
Front-to-back ratio (dB)=23
Input impedance (O)50
Isolation between ports=28dB
Cross-polar ratio=15dB@0 degrees=10dB@+/-60 degrees
Sidelobe suppression for first sidelobe above horizon15 dB
VSWR=2
Beamwidth angleHorizontal 90 degreesVertical 7 degrees
Maximum input power (W)200
Lightning protectionDC grounding
Input connector type2 N-type female
Dimensions (H xW x D)580 × 114 × 54 mm
Antenna weight (kg)3
Mechanical tilt angle0 ~ 10 degrees
Mounting hardware (mm)?35 ~?90
Rated wind velocity (m/s)60
Operating temperature-40 ~ 60 degrees C
Ordering Information

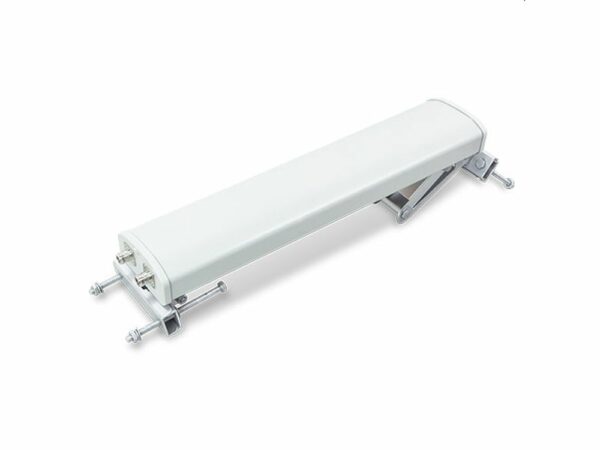

ANT-SE17AD5GHz 17dBi Dual-Polarity Sector Antenna
