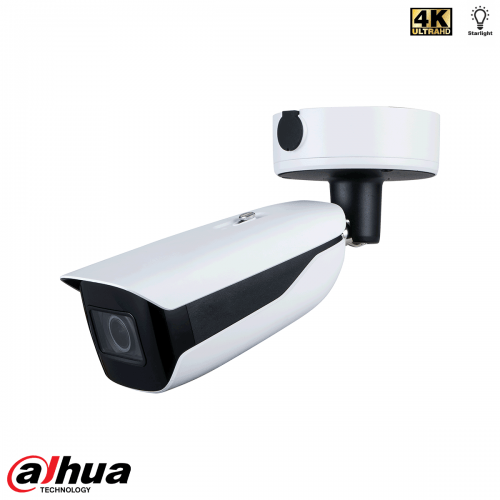

IPC-HFW71242HP-Z - DatasheetDahua 12MP Wizmind Dahua People Counting Queue Management Camera
- 12MP 1/1.7” CMOS image sensor, high image definition
- Outputs max. 12MP (4000 × 3000) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 60 m
- Rotation mode, DWDR; 3D DNR, HLC, BLC, digital watermarking
- ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Perimeter Protection , Face Detection , Video Metadata , ANPR , People Counting , Queue Management
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card
- 24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply); 12V DC power output, max. current 165mA; easy for installation.
- IP67, IK10 protection
- Five streams for three-channel HD video
